Grab your Discounted DC 48V 1500W Brushless Motor Controller For E-bike Scooter Electric Bicycle while the Store LAUNCH DISCOUNT is on!
SHIPS DIRECT FROM OUR USA WAREHOUSE
The regulator adapts the waterproof design, you can conveniently use it in your daily time Only the 8 wires (3 phase cables and 5 corridor-wires) of the brushless motor that can work with this controller, Other brushless motors are not compatible It has 4 groups of necessary cables (power cables, e-lock cables, acceleration cables and motor phase cables), When you hook these 4 group cables, the e-bike can function normally. In addition, these controllers have other optional Functions, users can connect them according to their applications Three speeds, anti-theft, ebs, cruise specification: Name: brushless motor controller Model: 517382 Rated voltage: 48 volts Rated power: 1500 watts Phase angle: self-study Accelerator voltage: 1.1-4. 2v Brake level: high / low Under voltage protection: 42 volts ± 0.5v Brushless three-phase motor of 60 ° or 120 °.
Operating conditions: -40 ~ 80 c Size: 24.5x8.7x4.3cm furniture: Suitable for: electric bicycle and scooter, mechanical or electric forklift, etc. Note: Compatible motors: Only the 8 cables (3 phase cables and 5 corridor cables) of the brushless motor that can work with this controller, other brushless motors are not compatible.__:These controllers have 4 groups of necessary cables (power cables, e-lock cables, reversing cables and motor phase cables), when connecting these 4 groups of cables, the e-moto can work normally. In addition, these controllers have other optional functions, users can connect them according to their applications. Package included: 1 X Brushless Motor Controller 48v 1500w Green (not suitable for lcd speed meter)

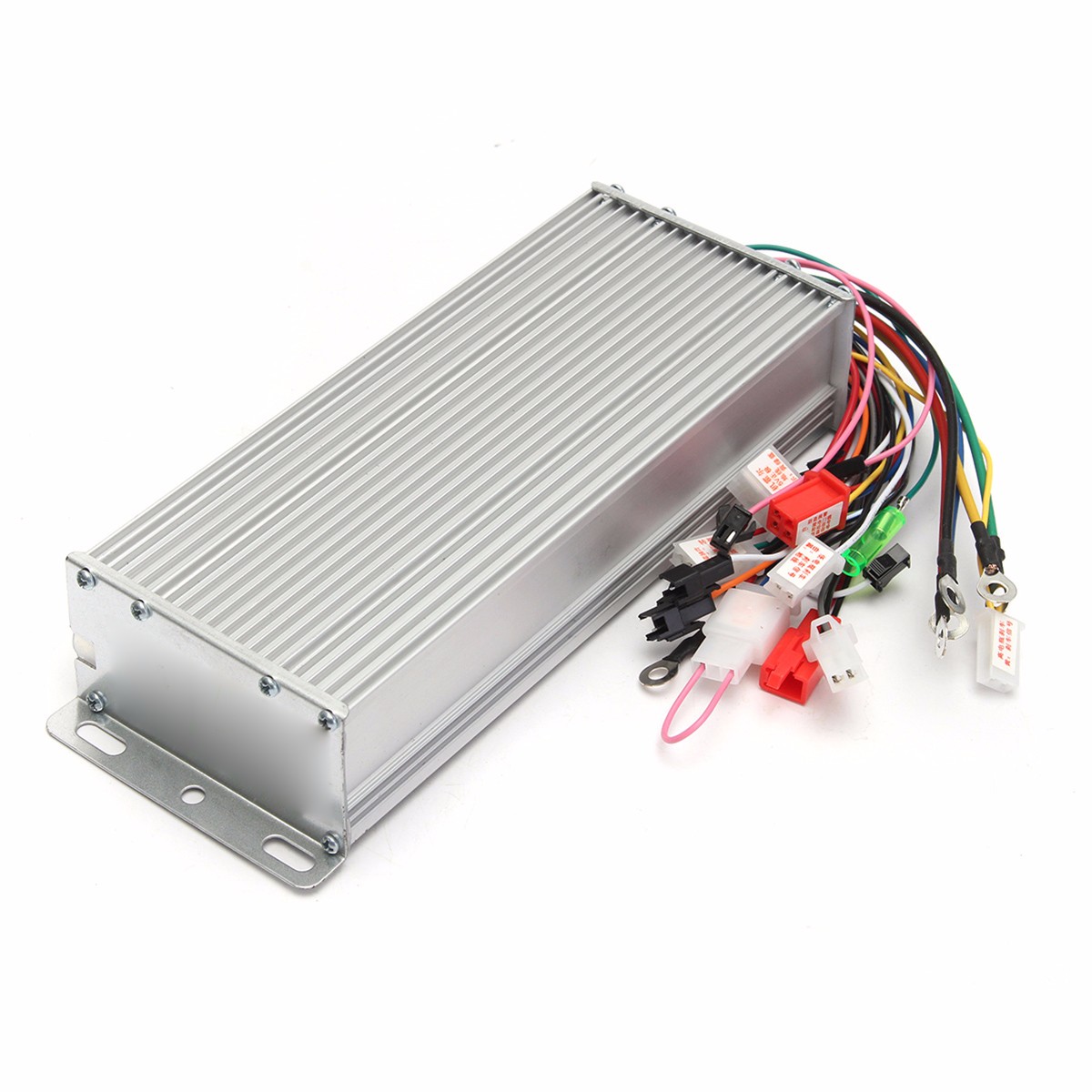

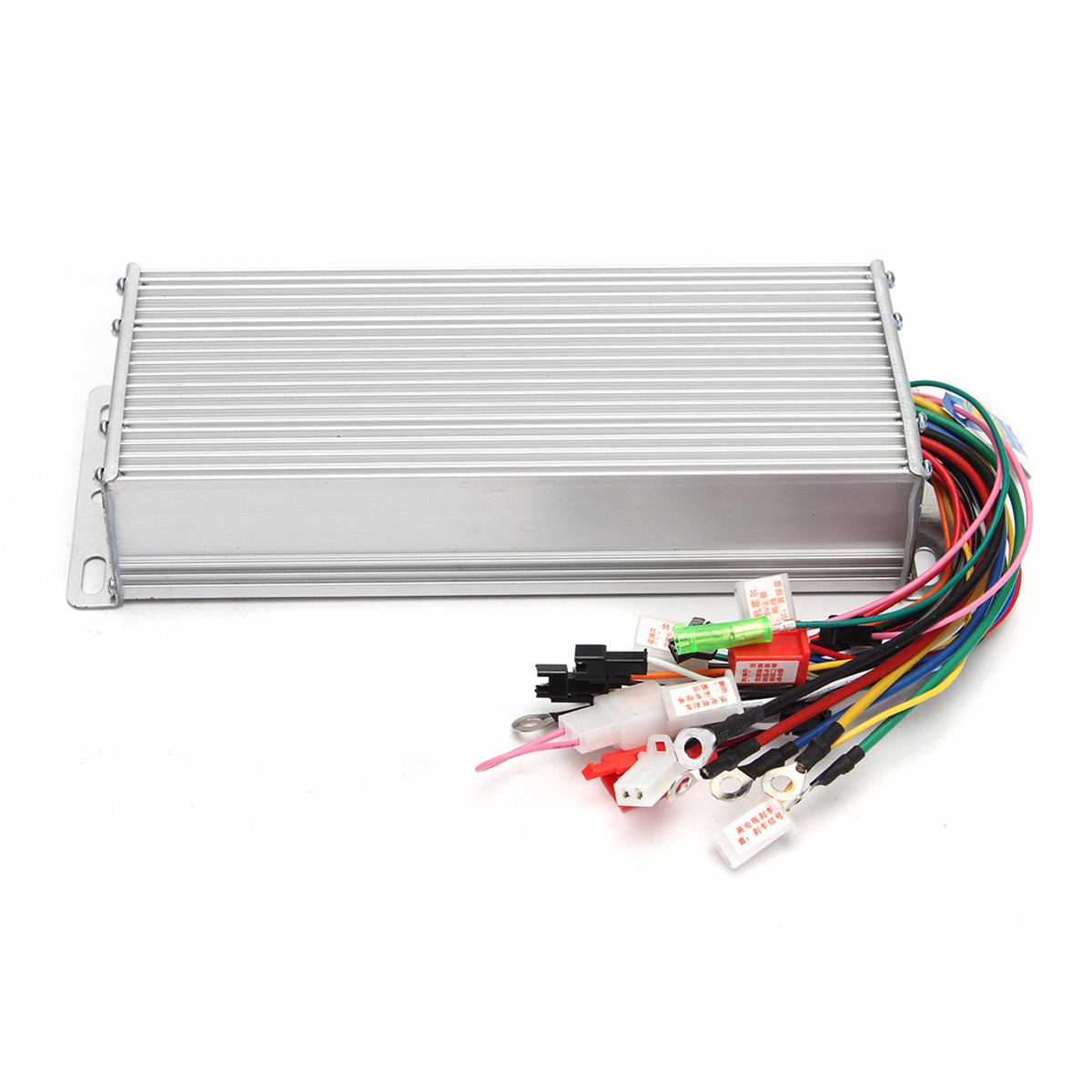

DC 48V 1500W Brushless Motor Controller For E-bike Scooter Electric Bicycle Features

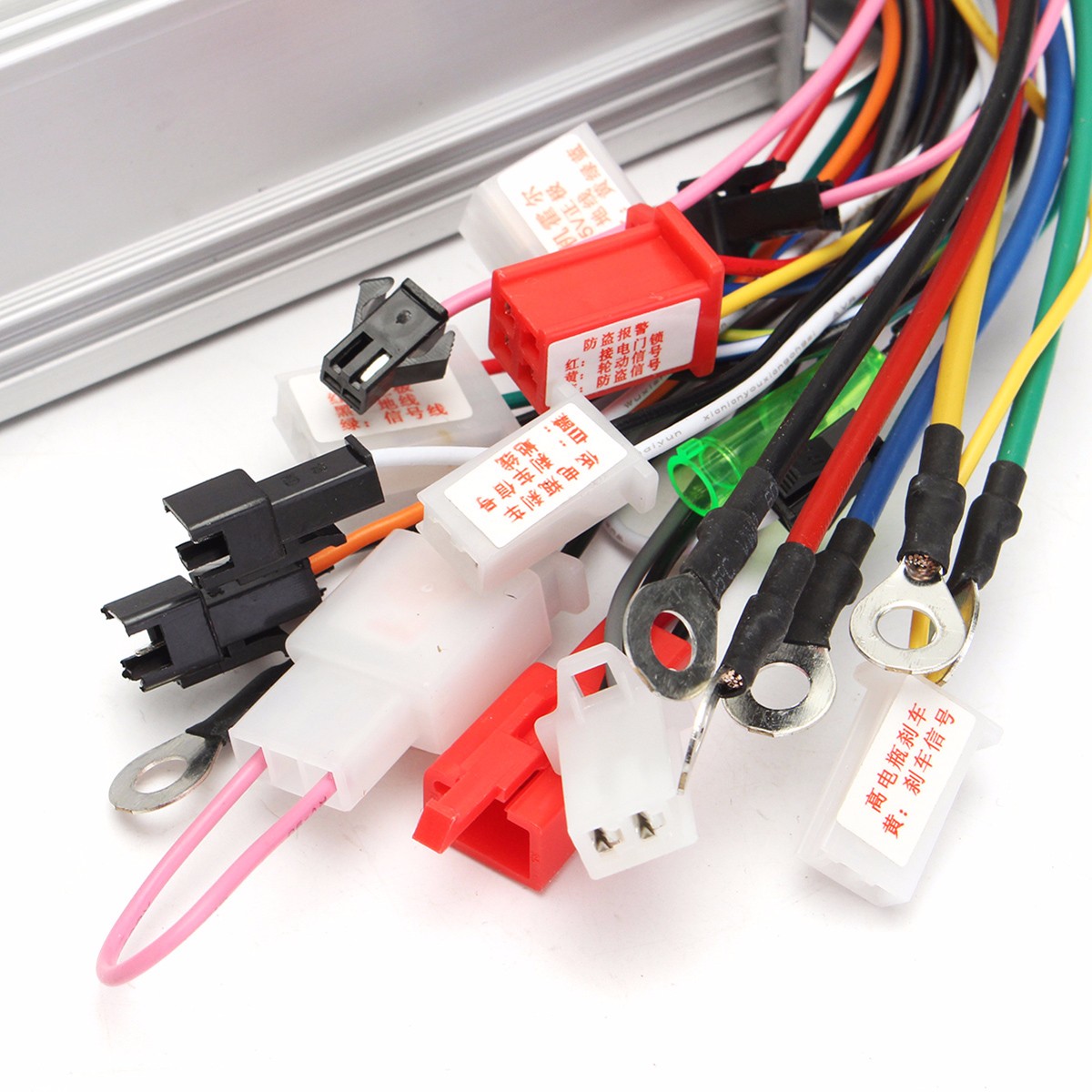

- Connection table: Power cables: large red + large black.
- Motor cables: large yellow + large green + large blue
- Electric door lock cable: the medium red cable with plug 6.3 mm
- Lobby cables: small red, small black, small yellow, small green, small blue
- will be changing the cruiser function)
- LCD display cables: blue (speed change button) + green (speed call to lcd)
- speed meter cable: green (not suitable for lcd speed meter) installation
